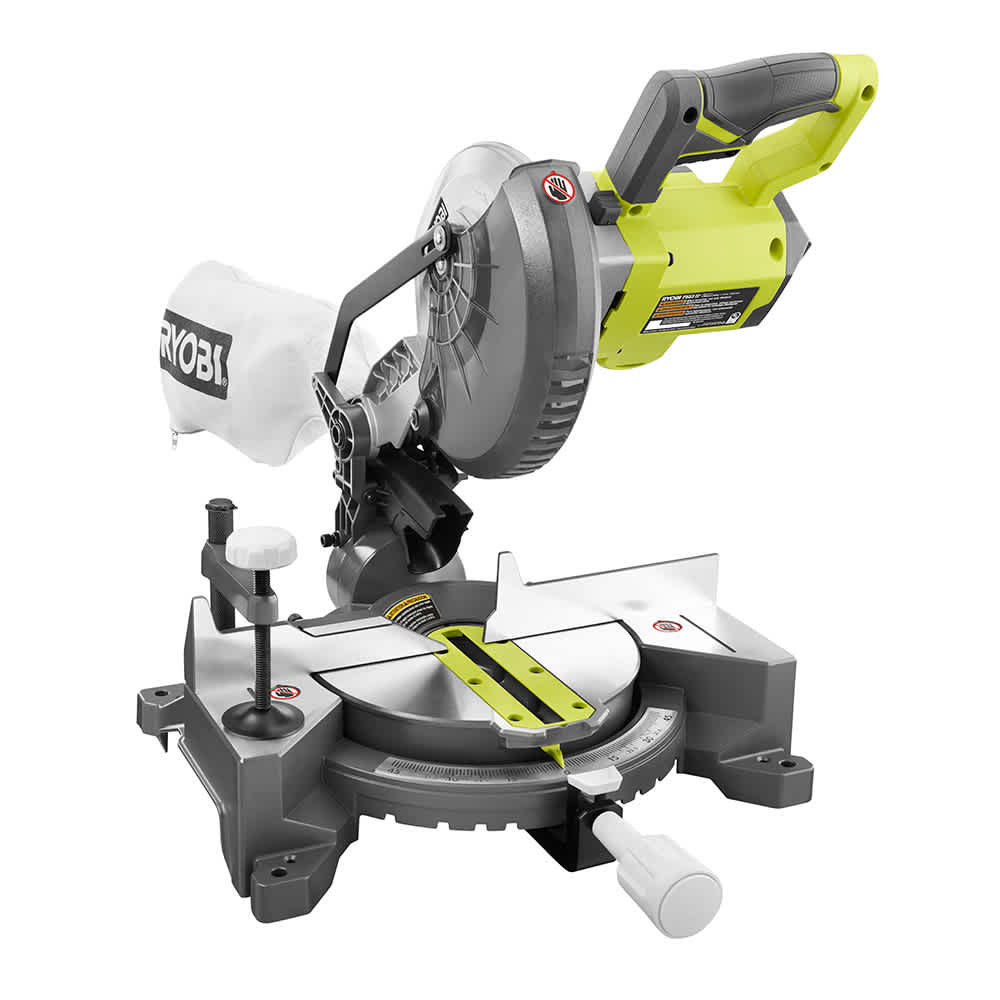

18V ONE+ Cordless 7-1/4" Mitre Saw
Up to 900 cuts per charge with the ONE+ 4 Ah LITHIUM+ Battery
Includes: 7-1/4 in. Blade, Blade Wrench, Dust Bag, and Work Clamp
Adjustable Bevel from 0° - 45° with Adjustable Positive Stops at 0° and 45°
1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
Up to 2x4 cutting capacity and 4-1/4 in. cross cut capacity
Mitre stops located at the most common angles for quick cut settings: 0º, 15º, 22.5º, 31.6º and 45º left and right

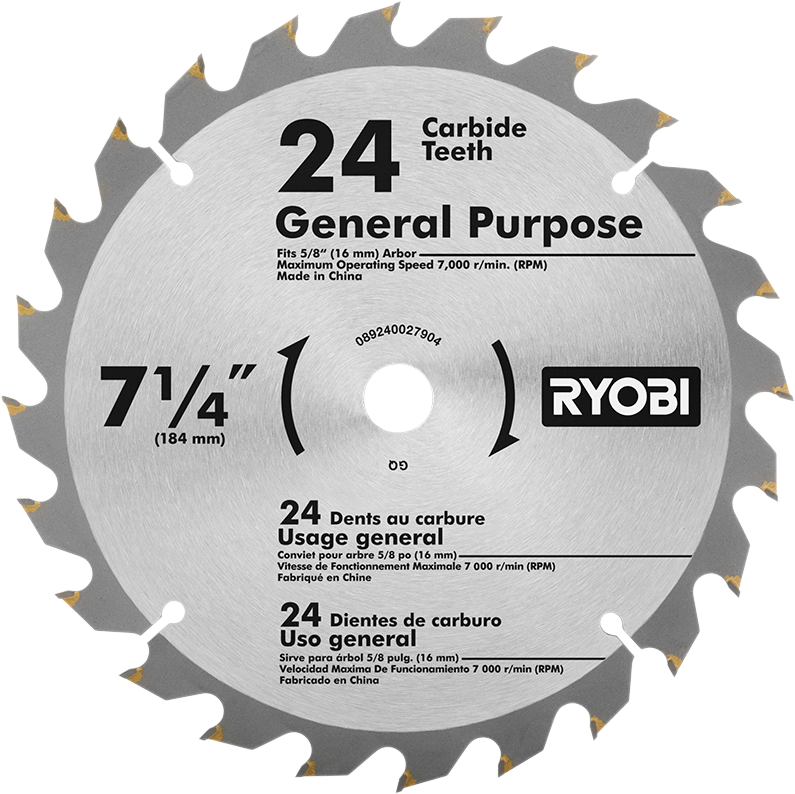

24-tooth Carbide-Tipped blade improves performance with fast, clean cuts
Adjustable bevel from 0º – 45º with adjustable positive stops at 0º and 45º
Spindle lock for easy blade changes
Extended miter range from 47º left and right for a wide variety of cuts
Machined and cast miter scale for accuracy

Battery: 18V (not included)
Motor Speed (RPM): 4,000/min
Dust Port: 1-1/4 in.
Blade Arbor: 5/8 in.
Blade Diameter: 7-1/4 in.
Cutting Capacities:
Baseboard laying flat: 4-1/4 in.
90º miter cut: 1-1/2 in. x 4-1/4 in.
45º miter cut: 1-1/2 in. x 3 in.
Tool Weight: 19 lbs.
P553 Compound Mitre Saw
24T Carbide-Tipped Blade
Blade Wrench
Dust Bag
Work Clamp
Operator’s Manual
Order your RYOBI replacement parts online by clicking on the button below. In addition, you’ll have access to replacement part schematics. To order by phone, contact us at 1-877-634-5704.
If you have a question about this tool, try RYOBI HELP+, your one-stop destination for tips & techniques, manuals, troubleshooting, and FAQs.
